Ford Mustang (2005-2009) Official Workshop Service Manual and Electrical Wiring PDF
Take definitive command of your 2005-2009 Ford Mustang's maintenance and repairs with this comprehensive official workshop service manual.
This indispensable Ford Mustang repair manual offers detailed, step-by-step instructions for all engine variants from 2005 to 2009, including the 4.0L V6, 4.6L V8, and the high-performance 5.4L V8, along with comprehensive guidance for both manual and automatic transmissions.
Complete Electrical Wiring Diagrams

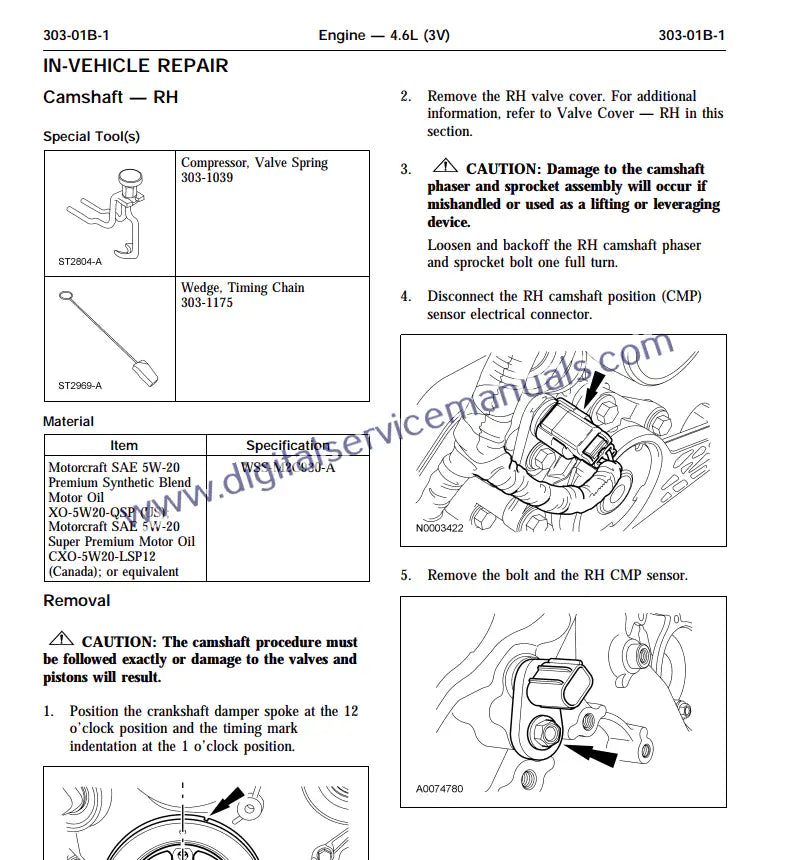

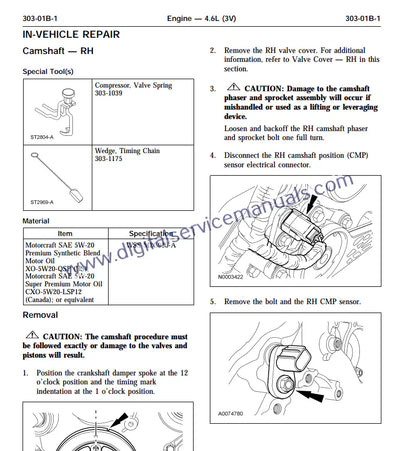

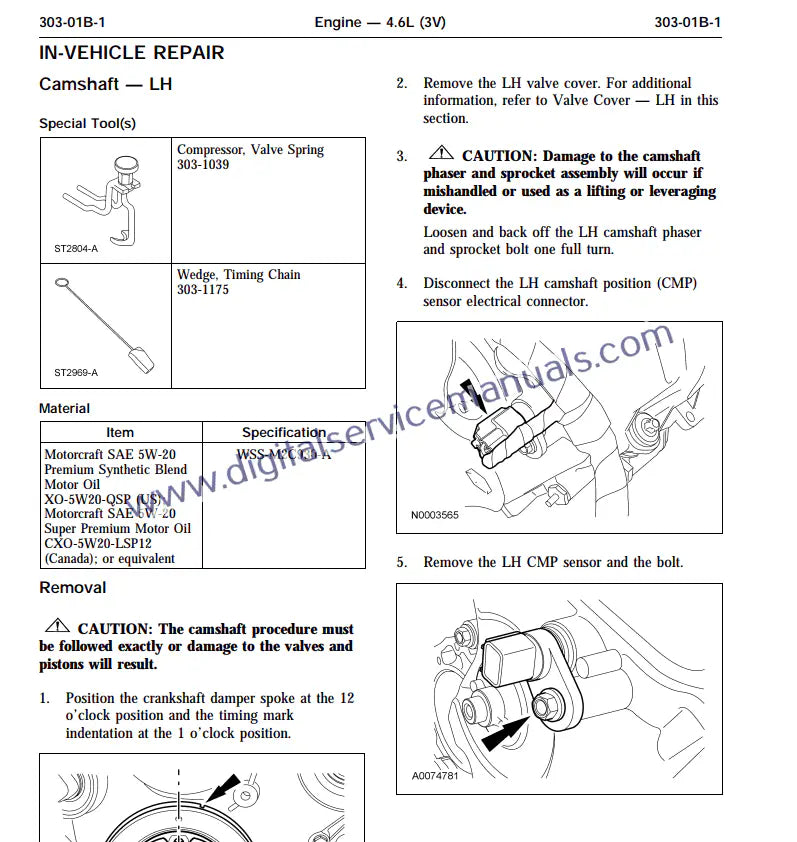

Engine Overhaul & Repair Instructions:
4.6L, OHC, 3-valve, EFI, 8-cylinder (Gasoline)
4.0L, SOHC, EFI, 6-cylinder (Gasoline)
5.4L, DOHC, 4-valve, EFI, 8-cylinder (Gasoline)

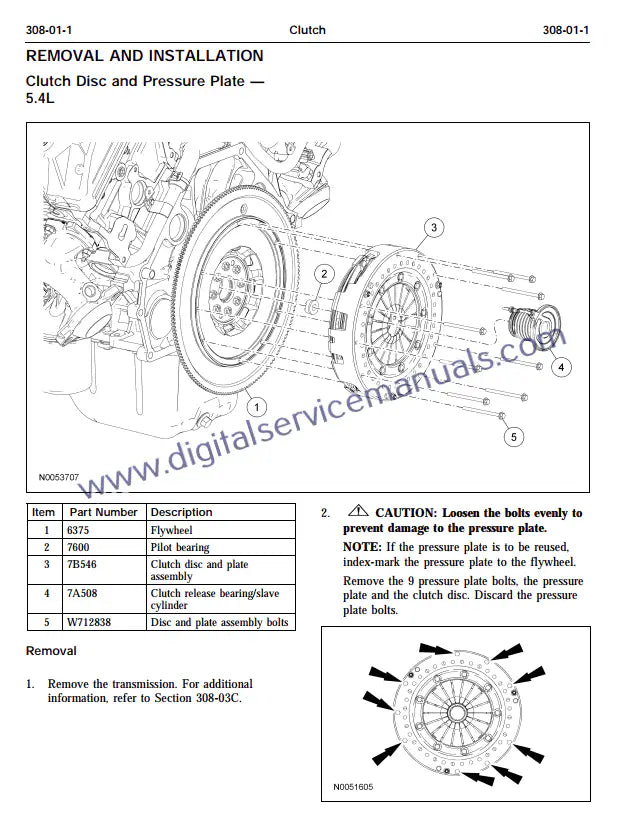

Transmission Service & Rebuild Guides:
6-speed manual (T56) — Shelby
5-speed manual (T5OD/TR3150) — Base Models
5-speed manual (TR3650) — GT Models
5-speed automatic (5R55S) — Base/GT Models
Features & Advantages ✨
Printable PDF Format: Easily viewable on any device with a PDF reader. You can print the entire manual or just specific sections you need for your workbench! 📄
Instant Email Delivery: Receive your download link immediately after completing your purchase. 📧
System Requirements: Compatible with Windows XP, Vista, 7, 8, and 10. Requires a standard PDF reader.
English Language: All instructions are clear, concise, and easy to follow.
